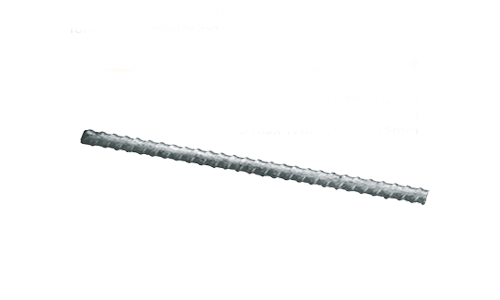

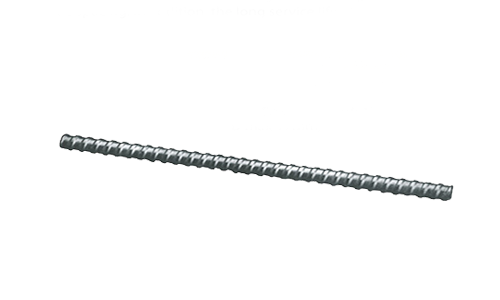

Quality: ST 885/1080

Allow Load: 90KN (DIN 18216)

Breaking Load: 190 KN

D max 17mm, d min 15mm

Weldable, Flexible

Allow Load: 85KN

Breaking Load: 170 KN

D max 17mm, d min 15mm

Forged with DYWIDAG thread

Support surface 100mm

Hot-Dip galvanized

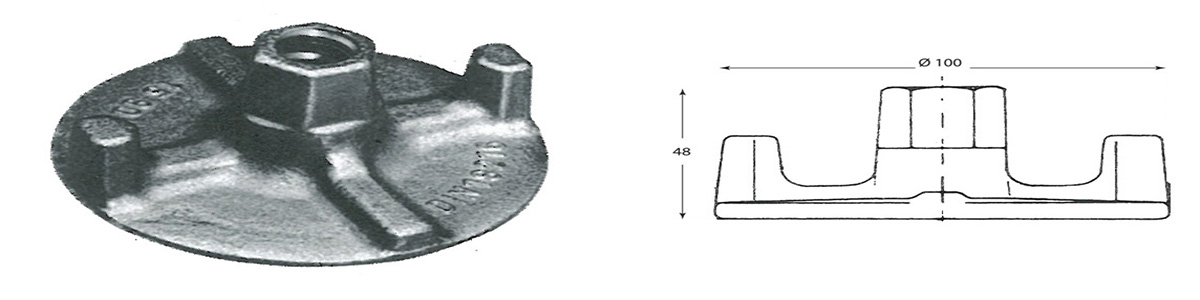

Flange Nut D 15/100

Flange 100mm0, SW 26

Quality: GTW 45

Allow Load: 90KN (DIN 18216)

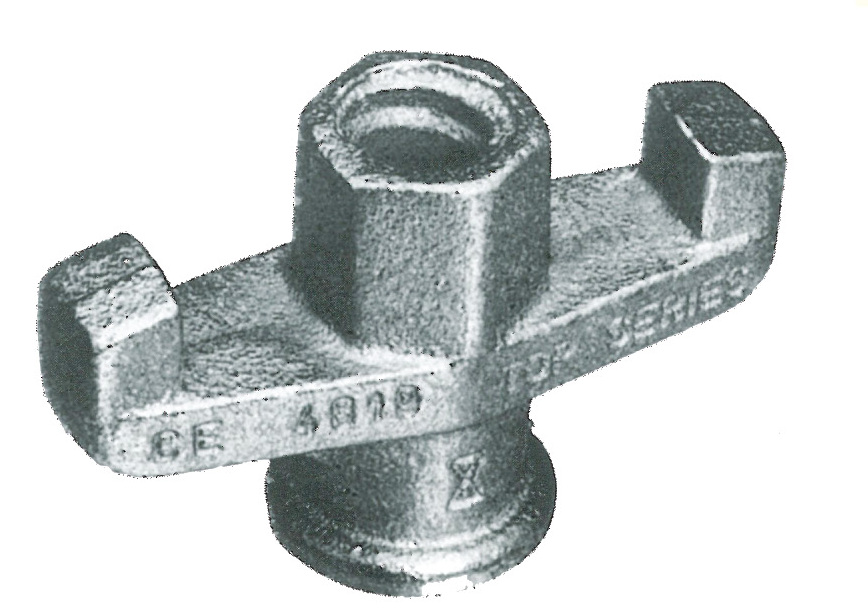

With two wings, Forged with DYWIDAG thread

Hot-Dip galvanized SW 26

Quality: GTW 45

Allow Load: 90KN (DIN 18216)

Steel Quality: 9 SMnPb8k to be used for climbing formwork

Allow Load: 90KN (DIN 18216)

Length: 30mm, 50mm, 70mm

Lenght: 144mm, SW 30

Steel Quality: 9 SMnPb8k to be used for climbing formwork

Allow Load: 90KN (DIN 18216)

Weight: 0.95kg

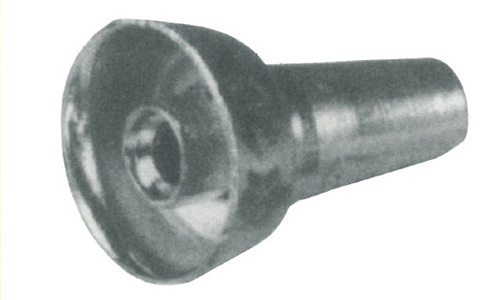

Lenght: 80mm

Steel Quality: 9 SMnPb8k to be used for climbing formwork

Allow Load: 90KN (DIN 18216)

Weight: 0.31kg

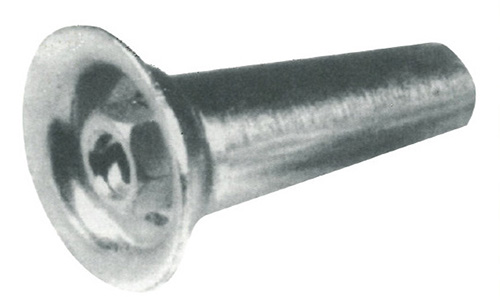

Lenght: 105mm, SW 30

Steel Quality: 9 SMnPb8k with galvanized moveable plate 0 max. 80mm, concrete overlap 55mm

Allow Load: 90KN (DIN 18216)

Weight: 0.67kg

Lenght: 75mm, SW 24

Steel Quality: C35 with galvanized moveable plate 0 max. 63mm, overlap 40mm

Allow Load: 90KN (DIN 18216)

Weight: 0.34kg

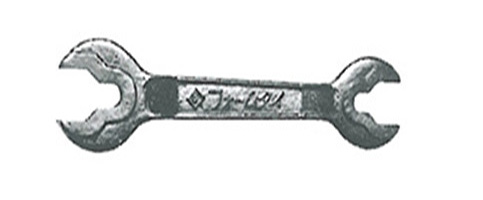

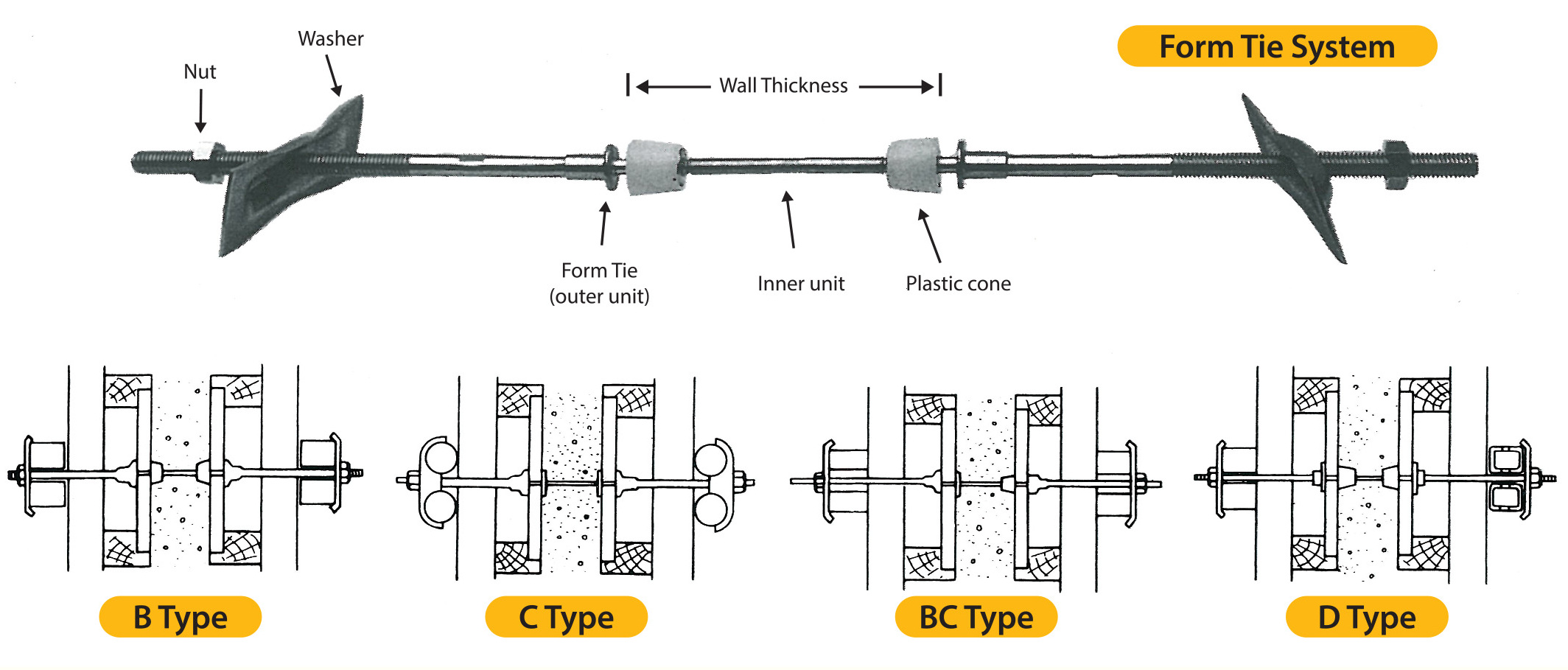

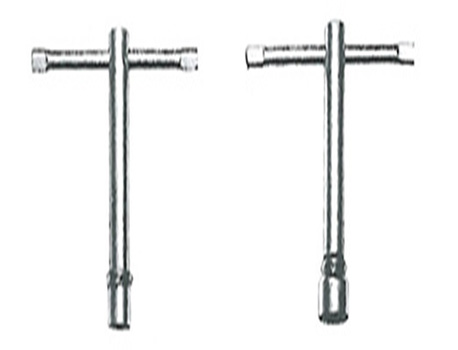

To be used to fastern Form Tie and Inner Unit and remove them

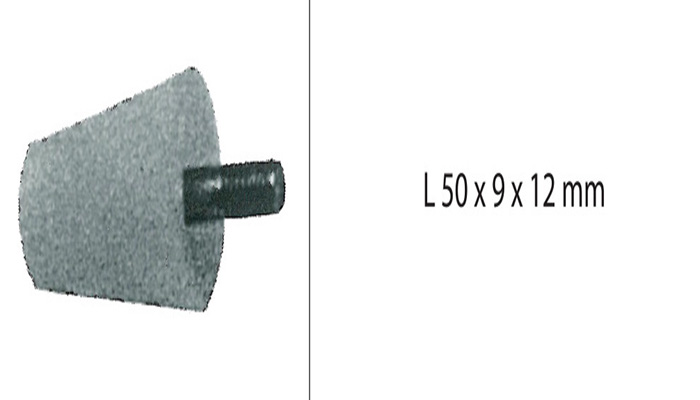

To be used to remove Cone

(9mm)

(9mm,12mm)
